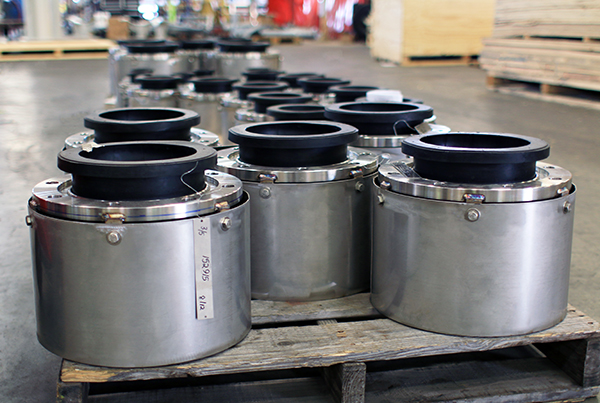

Manufacturer, Supplier & Exporter of Wide Arch Rubber Expansion Joint

Riddhi Siddhi Impex is a reputed manufacturer and domestic supplier of Wide Arch Rubber Expansion Joints in India, offering durable and high-performance solutions for a variety of industrial applications. These expansion joints are specifically engineered with a wider arch profile to provide greater movement absorption and flexibility than standard models. Designed to accommodate axial, lateral, and angular movements, wide arch rubber joints are ideal for systems subject to high vibration, thermal movement, and mechanical stress.

The Wide Arch Rubber Expansion Joint consists of a single, broad rubber arch reinforced with multiple layers of synthetic fabric or metal wire. The wider arch profile allows for enhanced flexibility and movement, especially in piping systems requiring superior displacement capabilities. This makes it suitable for installations in water treatment plants, chemical plants, power generation systems, HVAC systems, and marine applications.

Riddhi Siddhi Impex manufactures these expansion joints using top-grade rubber materials such as EPDM, Neoprene, Nitrile, and Natural Rubber, depending on the required chemical and temperature resistance. These joints are typically installed between flanges and can be customized in terms of arch width, flange drilling, and reinforcement structure to match specific client requirements and system conditions.

As a Wide Arch Rubber Expansion Joint Domastic supplier, the company has built a robust supply network covering key cities across India. Their product range is widely available in industrial hubs such as Mumbai, Delhi, Bengaluru (Bangalore), Hyderabad, Chennai, and Kolkata, where infrastructure and manufacturing demand reliable expansion solutions. These joints help reduce pipe strain and eliminate the need for costly anchors or guides by absorbing movement efficiently

In addition to metro cities, Riddhi Siddhi Impex caters to expanding markets in Pune, Ahmedabad, Surat, Vadodara, Rajkot, Nagpur, Indore, Bhopal, Jaipur, Kanpur, and Lucknow. These regions, rich in process industries, power stations, and urban infrastructure, benefit from high-quality rubber expansion joints that reduce maintenance and downtime while improving system reliability.

Wide Arch Rubber Expansion Joint – Specification & Details

Technical Specifications

Property	Details
Product	Wide Arch Rubber Expansion Joint
Brand	Riddhi Siddhi Impex
Size Range	40 mm to 1000 mm
Arch Type	Wide Single Arch
Material	EPDM, Neoprene, Nitrile, Natural Rubber
Pressure Rating	Up to 25 Bar
Temperature Range	-30°C to +130°C
End Connection	Flanged (ANSI, DIN, IS)

Chemical Composition

Rubber Type	Primary Composition
EPDM	Ethylene, Propylene, Diene, Carbon Black
Nitrile (NBR)	Acrylonitrile, Butadiene, Reinforcing Additives
Neoprene	Chloroprene, Fillers, Processing Agents
Natural Rubber	Polyisoprene, Vulcanizing Agents

Mechanical Properties

Property	Range
Hardness	50 – 70 Shore A
Tensile Strength	8 – 20 MPa
Elongation at Break	300 – 500%
Compression Set	<20%
Vibration Damping	Excellent

Standard Dimension Chart

Nominal Bore (NB)	Face-to-Face (mm)	Flange OD (mm)	Max Axial Movement	Max Lateral Movement
80 mm	150	200	±20 mm	±15 mm
150 mm	200	285	±30 mm	±25 mm
250 mm	250	405	±40 mm	±30 mm
400 mm	300	565	±50 mm	±40 mm

Equivalent Grades & Standards

Standard	Equivalent
IS	IS 5382
ASTM	ASTM F1123
DIN	DIN 4809
BS	BS 7159

Other Types of Rubber Expansion Joints

Type	Application
Single Arch	Standard use, vibration control
Multiple Arch	Greater flexibility
Gimbal	Multi-axis angular movement
Hinged	Single-plane angular control
Tied	Axial force restraint
Offset	Misalignment compensation

Through stringent quality control, international standard compliance (IS, ASTM, DIN), and a customer-first approach, Riddhi Siddhi Impex has positioned itself as a leading Wide Arch Rubber Expansion Joint Domastic supplier in India. Their products not only ensure smoother pipeline operations but also extend the service life of connected equipment by preventing mechanical damage caused by thermal and mechanical forces.

Frequently Asked Questions (FAQs)

Q1: What is a Wide Arch Rubber Expansion Joint?

A: It is a type of expansion joint with a broader arch design that allows greater flexibility and movement, ideal for applications requiring high displacement.

Q2: What industries use these joints?

A: They are widely used in oil & gas, water treatment, HVAC, power plants, and chemical processing industries.

Q3: Can these joints be customized?

A: Yes, Riddhi Siddhi Impex offers customization in size, rubber type, flange material, and movement ratings to meet specific project needs.

Q4: Where are you supplying in India?

A: We are domestic suppliers in cities like Mumbai, Delhi, Bangalore, Chennai, Kolkata, Pune, Surat, Dahej, Rajkot, and over 40+ Indian cities.
