Manufacturer, Supplier & Exporter of Tri-Clover Sampling Valve

Tri-Clover Sampling Valve is a versatile and cost-effective material widely used in industries requiring precision alignment, spacing, and leveling. It belongs to the 200-series austenitic stainless steel family, known for its high strength, moderate corrosion resistance, and economic advantage due to its lower nickel content. The grade 201 replaces a portion of nickel with manganese and nitrogen, making it suitable for many applications where appearance, durability, and performance are critical but cost is a concern. These shims are available in a variety of thicknesses, widths, and surface finishes like 2B, BA, or mirror, and are ideal for use in automotive, electronics, construction, and manufacturing sectors.

Riddhi Siddhi Impex, a prominent manufacturer and supplier based in India, offers high-quality Tri-Clover Sampling Valves for hygienic and sanitary applications. Manufactured using premium stainless steel grades like SS 304, SS 316, and SS 316L, these valves ensure corrosion resistance, chemical compatibility, and compliance with stringent hygiene standards such as 3A, ASME BPE, and FDA. The valves are typically equipped with a tri-clamp connection, allowing easy installation and removal for cleaning and validation.

The design of the Tri-Clover Sampling Valve by Riddhi Siddhi Impex features a compact body, smooth internal surfaces, and minimal dead zones, ensuring clean sampling without any product contamination or residue build-up. The valve is usually spring-loaded or operated via manual knobs or actuators, depending on user needs. It supports clean-in-place (CIP) and sterilize-in-place (SIP) processes, making it ideal for use in high-purity applications.

The sampling valve’s operational safety and precision enable manufacturers to perform regular quality control checks throughout production without stopping the process flow. This not only ensures consistency in product output but also helps in compliance with regulatory requirements. Riddhi Siddhi Impex ensures each valve is tested for pressure integrity, material traceability, and dimensional accuracy before dispatch.

As a leading domestic supplier of Tri-Clover Sampling Valves, Riddhi Siddhi Impex provides timely delivery and technical support across India's major cities, including Mumbai, Delhi, Bengaluru, Hyderabad, Chennai, Pune, Ahmedabad, Kolkata, Surat, and Vadodara. These cities house significant pharmaceutical, dairy, and food processing clusters, where hygienic sampling is a critical process requirement.

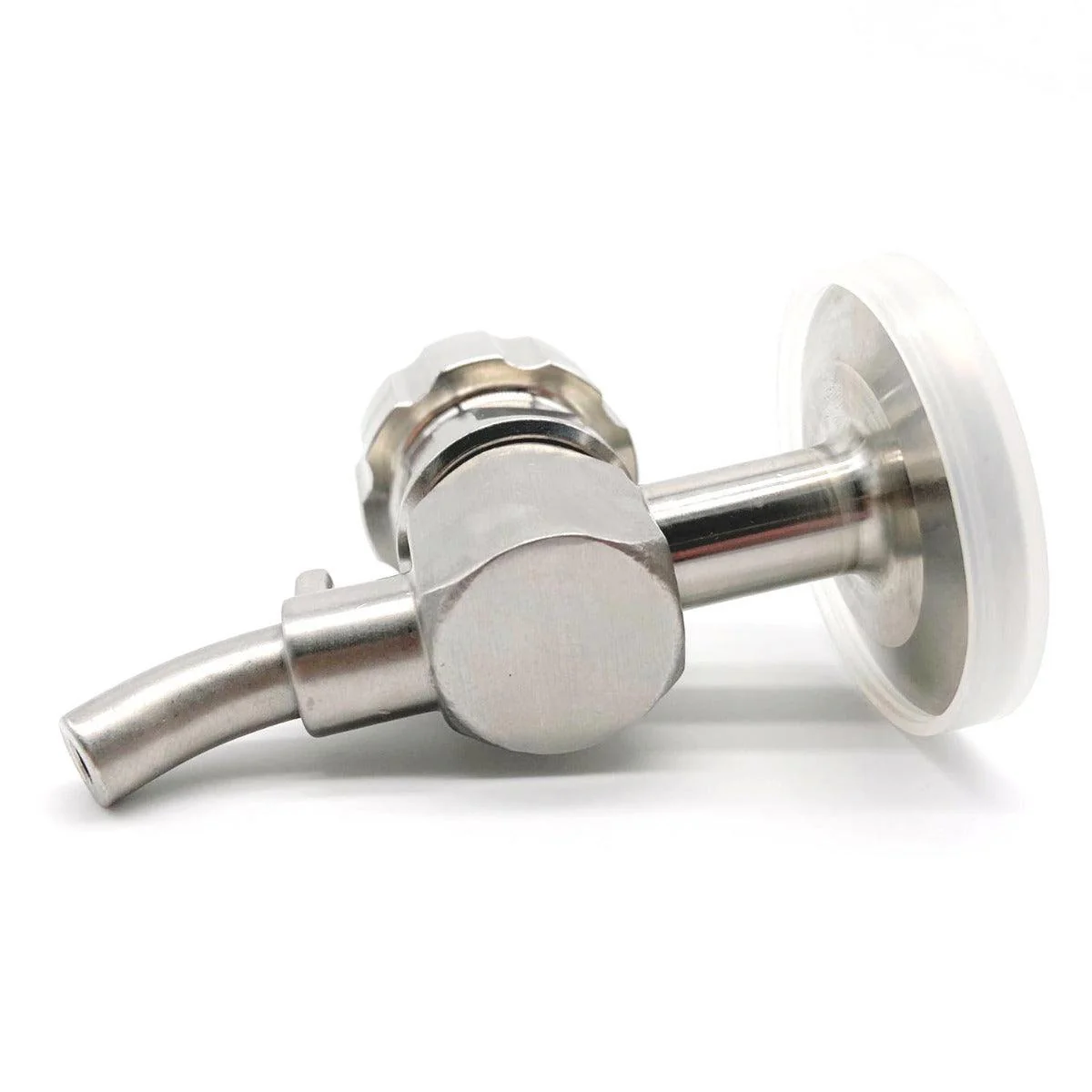

Tri-Clover Sampling Valve

Specifications

Parameter	Details
Valve Type	Tri-Clover Sampling Valve (Hygienic Type)
Material	Stainless Steel 304 / 316 / 316L
Size Range	1/2" to 2"
Connection Type	Tri-Clamp (Clamp End)
Operation	Manual / Spring-loaded / Pneumatic
Seal Material	EPDM / PTFE / Silicone / FKM
Application	Food, Pharma, Dairy, Beverage, Cosmetics
Pressure Rating	Up to 10 bar
Temperature Range	-10°C to 140°C

Chemical Composition (Stainless Steel 316L)

Element	Composition (%)
Carbon (C)	0.03 max
Chromium (Cr)	16.0 – 18.0
Nickel (Ni)	10.0 – 14.0
Molybdenum (Mo)	2.0 – 3.0
Manganese (Mn)	2.0 max
Silicon (Si)	1.0 max
Phosphorus (P)	0.045 max
Sulfur (S)	0.03 max

Mechanical Properties

Property	Value
Tensile Strength	515 MPa min
Yield Strength	205 MPa min
Elongation	40% min
Hardness	HRB 95 max

Dimension Chart

Valve Size	Outer Diameter (mm)	Height (mm)	Weight (Kg)
1/2"	25.4	90	0.3
1"	50.5	110	0.6
1.5"	50.5	130	0.8
2"	64.0	150	1.2

Equivalent Grades

Standard	Grade
ASTM	A351 CF8M (316)
DIN	1.4408
JIS	SCS14

Equivalent Standards

Standard	Description
ASME BPE	Bioprocessing Equipment Standard
3A Sanitary Standards	Hygienic Design for Food & Dairy Equipment
DIN 11866	Stainless Steel Tube Systems
ISO 1127	International Standard for Stainless Tubes

Other Types of Valves Offered

Valve Type	Application
Tri-Clover Butterfly Valve	Flow regulation in sanitary systems
Tri-Clover Check Valve	Prevents backflow in hygienic pipelines
Tri-Clover Ball Valve	On/off and throttling of liquid flow
Tri-Clover Divert Valve	Switch flow between two or more lines

The company’s reach also extends to industrial hubs and tier-2 and tier-3 cities such as Rajkot, Indore, Bhopal, Jaipur, Lucknow, Kanpur, Agra, Varanasi, Amritsar, Chandigarh, Mysuru, Udaipur, Jodhpur, Visakhapatnam, Coimbatore, Madurai, Kochi, Mangalore, Thiruvananthapuram, and Nashik. In addition, major industrial zones like Ankleshwar, Dahej, Valsad, Navsari, Kolhapur, Chandrapur, Akola, Vilayat, Narmada, and Rajpipla are also covered through a robust distribution and service network.

8. Frequently Asked Questions (FAQs)

Q1: What is a Tri-Clover Sampling Valve used for?

A1: It is used to collect sterile samples from a process line or tank without contamination.

Q2: Are these valves suitable for pharma and dairy applications?

A2: Yes, they comply with ASME BPE and 3A standards, making them ideal for pharma, dairy, and food sectors.

Q3: Do you offer test certificates and third-party inspection?

A3: Yes, Riddhi Siddhi Impex provides mill test certificates, dimensional reports, and third-party inspections upon request.

Q4: Which Indian cities do you supply to?

A4: We supply across India including Mumbai, Delhi, Bengaluru, Chennai, Ahmedabad, Surat, Rajkot, Coimbatore, Kochi, and more.
