Manufacturer, Supplier & Exporter of Threaded Pump Connectors

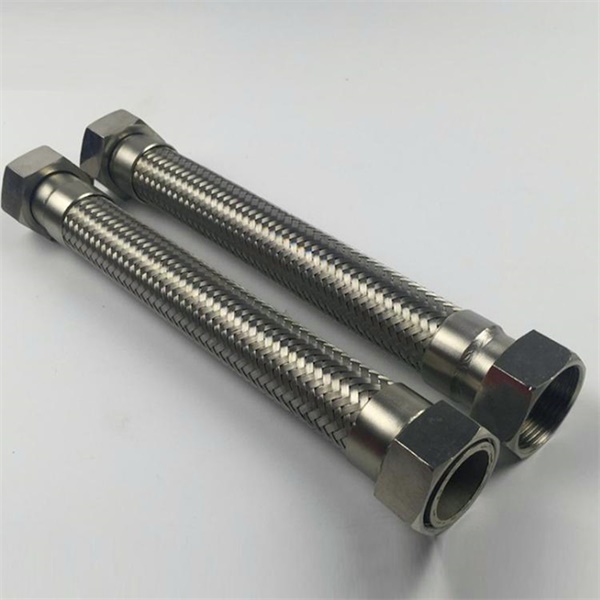

Threaded Pump Connectors are specialized fittings designed to connect pumps with piping systems using threaded joints. These connectors are particularly useful in systems where welding is not feasible or where ease of assembly and disassembly is critical. Threaded connectors offer a cost-effective and efficient solution for low to medium pressure systems, often found in industries such as water supply, chemical processing, HVAC, fire protection, and general fluid transfer applications.

Riddhi Siddhi Impex, based in Mumbai, India, is a reputable manufacturer and supplier of high-quality threaded pump connectors and other piping components. With decades of experience in the metal industry, the company offers a wide range of threaded fittings, flanges, pipes, and connectors in materials such as stainless steel, carbon steel, duplex steel, and various alloys. Their products are manufactured in compliance with national and international standards like ASTM, ASME, ANSI, and DIN, ensuring durability and precision in critical applications.

The threaded pump connectors manufactured by Riddhi Siddhi Impex are designed to meet demanding industrial conditions. Available in male and female threaded configurations, these connectors are easy to install, maintain, and replace. They are ideally suited for systems that require frequent dismantling, or where vibration and thermal movement may be present. These features make them a popular choice for small to medium-sized pump connections in both commercial and industrial environments.

The company’s advanced manufacturing facilities located in Palghar and Taloja (Maharashtra) are equipped with state-of-the-art machinery and rigorous quality control systems. Riddhi Siddhi Impex ensures that each threaded pump connector undergoes proper dimensional inspection, thread verification, and pressure testing before dispatch. The company also offers customized solutions to meet client-specific requirements regarding size, material, and thread type (BSP, NPT, or metric)

These threaded pump connectors are especially valued in locations with high chemical processing activity such as Ankleshwar, Dahej, and Vapi, where corrosion resistance and reliable joint sealing are essential. Riddhi Siddhi Impex offers connectors in stainless steel grades like 304, 316, and 321, as well as carbon steel and duplex grades for higher strength and corrosion resistance. Their products are compatible with various Indian and international piping standards..

Threaded Pump Connectors - Specifications & Details

1. Chemical Composition

Material Grade	C (%)	Mn (%)	Si (%)	P (%)	S (%)	Cr (%)	Ni (%)	Mo (%)	Other Elements
ASTM A105 (Carbon Steel)	0.35 max	0.60 - 1.05	0.10 - 0.35	0.035 max	0.040 max	–	–	–	–
SS304 (AISI 304 / ASTM A182 F304)	0.08 max	2.00 max	0.75 max	0.045 max	0.030 max	18.00 - 20.00	8.00 - 10.50	–	–
SS316 (AISI 316 / ASTM A182 F316)	0.08 max	2.00 max	0.75 max	0.045 max	0.030 max	16.00 - 18.00	10.00 - 14.00	2.00 - 3.00	–

2. Mechanical Properties

Material Grade	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation (%)	Hardness (HB)
ASTM A105 (Carbon Steel)	250 min	485 - 620	23 min	187 - 241
SS304	205 min	515 - 720	40 min	≤ 200
SS316	205 min	515 - 720	40 min	≤ 200

3. Dimension Chart (Threaded Pump Connectors)

Nominal Size (NPS)	Outside Diameter (mm)	Thread Type	Length (mm)	Weight (kg approx.)
½"	21.3	BSP/NPT	55	0.12
1"	33.7	BSP/NPT	65	0.20
1½"	48.3	BSP/NPT	75	0.45
2"	60.3	BSP/NPT	90	0.75
3"	88.9	BSP/NPT	110	1.6
4"	114.3	BSP/NPT	130	3.2

4. Equivalent Grades and Standards

Material	Equivalent Grades	Equivalent Standards
Carbon Steel	ASTM A105, A350 LF2	ASME B16.11, ANSI B16.5
Stainless Steel 304	AISI 304, ASTM A182 F304	ASME B16.11, ANSI B16.5, DIN 11850
Stainless Steel 316	AISI 316, ASTM A182 F316	ASME B16.11, ANSI B16.5, DIN 11850

5. Other Types of Pump Connectors

Type	Description	Typical Use
Flanged Pump Connectors	Connectors with flanged ends for bolted connections	High pressure and large diameter pumps
Welded Pump Connectors	End-to-end welding joints for permanent connection	High pressure, temperature, and leak-proof applications
Socket Weld Connectors	Pipe inserted into a recessed area of the fitting then welded	Small diameter piping systems, high pressure

>

In conclusion, Riddhi Siddhi Impex stands out as a trusted domestic supplier of threaded pump connectors across India. Their strong manufacturing capabilities, wide product range, commitment to quality, and pan-India distribution network make them a reliable partner for industries requiring efficient and cost-effective pipe connection solutions. Whether you're operating in a metro city or an industrial township, Riddhi Siddhi Impex ensures consistent availability and timely delivery of threaded pump connectors for all your pumping system needs.

Frequently Asked Questions (FAQs) – Threaded Pump Connectors

Q1: What temperature and pressure ranges are typical for Threaded Pump Connectors?

A: Typical working pressures range from approximately 150 psi up to 500–600 psi (≈10–35 bar), depending on size, braid, material, and temperature. As temperature increases, pressure rating decreases. For example, stainless steel flexible hose connectors maintain full rating around 70°F (≈21–25°C) but allow lower pressure at elevated temperatures.

Q2: Which types of flanges / standards should I choose for compatibility?

A: It depends on the pipe or pump specification. Common standards include ANSI/ASME B16.5, B16.47, EN 1092-1, and ISO 7005. Choose a standard that matches or is compatible with mating flanges.

Q3: What materials are used and how do I pick?

A: Stainless steels (304, 316L, 321) are used for corrosion resistance; carbon steel (ASTM A105, etc.) for general applications; duplex stainless for aggressive, chloride, or marine environments. Material choice depends on fluid type, temperature, corrosion factors, and budget. Also consider braid type and hose construction.

Q4: Can standard dimensions be customized?

A: Yes. Many manufacturers supply custom lengths, flange drilling patterns, special flange faces, and other customizations. OEMs may require special bolt patterns, sizes, or materials. Flexible hose sections are especially customizable.
