Manufacturer, Supplier & Exporter of PVC Coated Perforated Carbon Steel Sheet

PVC Coated Perforated Carbon Steel Sheet is a specialized product that combines the mechanical strength of carbon steel with the benefits of perforation (for ventilation, light, filtering) and the protective properties of a PVC coating. In this design, a regular carbon steel sheet is first perforated with a pattern of holes (round, square, slotted, etc.), then coated (or laminated) with PVC to protect from corrosion, wear, and environmental exposure. The PVC layer also enhances durability, aesthetics, and ease of maintenance..

Riddhi Siddhi Impex leverages advanced perforating and coating technologies to manufacture high-quality PVC Coated Perforated Carbon Steel Sheets. Their production process typically involves first punching or stamping precise hole patterns in cold or hot rolled carbon steel, followed by surface preparation, primer application, and then PVC lamination or coating on one or both sides. Quality control ensures uniform perforation, consistent PVC thickness, strong bonding, and defect-free surfaces.

One key advantage of these PVC-coated perforated sheets is their combined functionality: they allow airflow, drainage, or light penetration via the perforations, while still protecting the underlying steel from rust or degradation. This makes them ideal for applications such as façade panels, sunshades, ventilation grilles, machine guards, acoustic screens, signage backing, and decorative panels..

Riddhi Siddhi Impex positions itself as a PVC Coated Perforated Carbon Steel Sheet domestic supplier across India. They maintain inventory, finishing capability, and logistics to serve major metropolitan regions like Mumbai, Delhi, Bengaluru, Hyderabad, Chennai, Kolkata, Pune, Ahmedabad, Surat, and Vadodara. For customers in these cities, lead times are minimized and product consistency is assured.

Riddhi Siddhi Impex also services lesser-known but growing industrial zones such as Nashik, Kolhapur, Chandrapur, Akola, Vilayat, Somnath, Dahej, Ankleshwar, Navsari, Valsad, Narmada, and Rajpipla. In these regions, clients benefit from local availability of robust, coated perforated steel sheets without the delays of long-distance imports or custom orders.

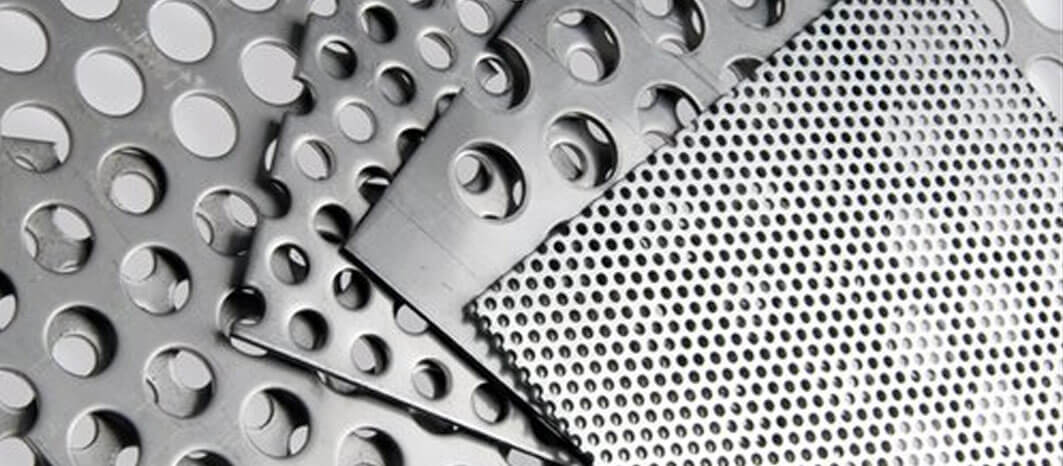

PVC Coated Perforated Carbon Steel Sheet

Specifications

Parameter	Details
Base Material	Carbon Steel (Hot Rolled or Cold Rolled)
Coating Type	PVC on one or both sides
Coating Thickness	50 – 200 microns (typical)
Sheet Thickness	0.3 mm to 8.0 mm (depending on perforation)
Width Range	Up to 1600 mm (or custom widths)
Length / Form	Coils or cut-to-length sheets
Hole Shapes / Patterns	Round, Square, Slot, Hex, Decorative
Open Area %	Typically 10 % – 60 % (varies with pattern)
Applications	Ventilation grills, façade panels, filters, partitions, acoustic screens

Chemical Composition (Typical Base Steel)

Element	Percentage (%)
Carbon (C)	0.10 – 0.25
Manganese (Mn)	0.30 – 0.90
Phosphorus (P)	≤ 0.040
Sulfur (S)	≤ 0.050
Silicon (Si)	0.05 – 0.35

Mechanical Properties

Property	Value
Tensile Strength	≥ 400 MPa
Yield Strength	≥ 250 MPa
Elongation	≥ 20 %
Hardness	≤ 180 HB

Dimension Chart

Sheet Thickness (mm)	Hole Diameter (mm)	Pitch / Center (mm)	Open Area (%)	Typical Sheet Size (mm)
1.0	2.0	4.0	20 %	1250 × 2500
1.5	3.0	6.0	25 %	1600 × 3000
2.0	4.0	8.0	30 %	1600 × 3000
3.0	5.0	10.0	35 %	1600 × 3000
5.0	6.0	12.0	40 %	1600 × 3000

Equivalent Grade

Standard	Grade / Equivalent
IS	D / CR1 / CR2
ASTM	A36 / A1011
EN	EN 10130 DC01 / DC04
JIS	SPCC / SPCE

Equivalent Standards

Standard	Description
IS 513 / IS 277	Cold Rolled Carbon Steel Sheets & Strips
ASTM A1008 / A1011	Cold Rolled Carbon Steel Sheet, Commercial Quality
EN 10130 / EN 10346	Cold Rolled Low Carbon Steel Flat Products
JIS G3141 / JIS G3302	Commercial Cold Rolled Steel Sheets

Other Types of Coated / Perforated Steel Sheets

Type	Description	Typical Applications
PVC Coated Flat Carbon Steel Sheet	Non‑perforated, PVC coated flat sheets	Cladding, panels, cabinets
PVC Coated Galvanized Steel Sheet	Galvanized substrate with PVC coat	Roofing, outdoor panels
PVC Coated Embossed Steel Sheet	Textured surface with PVC coating	Decorative panels, interiors
Color Coated / Pre‑painted Steel Sheet	Painted (polyester, PVDF etc.) coated sheet	Facade, signage

Clients rely on Riddhi Siddhi Impex not only for product quality but also for customization, technical support, and after-sales service. They offer variation in perforation patterns (hole shapes, pitch, open-area percentage), PVC coating thicknesses and colors, sheet sizes, and edge finishing. This flexibility, combined with their domestic supply network, makes them a preferred choice for projects across India.

Frequently Asked Questions (FAQs)

Q1: What is PVC Coated Perforated Carbon Steel Sheet?

A: It is a carbon steel sheet that has perforations (holes) and is coated with PVC to protect against corrosion and improve aesthetics.

Q2: What applications does it suit best?

A: Common uses include ventilation grilles, acoustic screens, façade cladding, filters, machine guards, decorative panels, and solar shading.

Q3: Can customers choose hole sizes and patterns?

A: Yes, Riddhi Siddhi Impex offers customizable hole shape, size, pitch, open area, and PVC coating thickness based on project needs.

Q4: Do you supply these sheets across India?

A: Absolutely. Riddhi Siddhi Impex is a trusted domestic supplier in cities like Mumbai, Delhi, Bengaluru, Hyderabad, Chennai, Kolkata, Pune, Ahmedabad, Surat, Rajkot, Nagpur, Jaipur, Lucknow, and many more.
