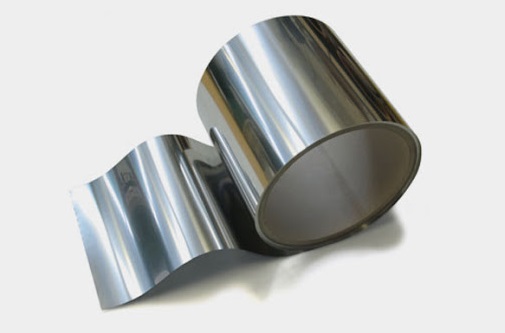

Manufacturer, Supplier & Exporter of Inconel Shim (600, 625, 718)

Inconel Shims are precision-engineered thin sheets made from high-performance nickel-chromium-based alloys, such as Inconel 600, Inconel 625, and Inconel 718. These shims are specifically designed for applications that require exceptional resistance to heat, corrosion, oxidation, and extreme mechanical stress. Known for their outstanding thermal stability and strength at elevated temperatures, Inconel shims are widely used in aerospace, power generation, chemical processing, marine, and nuclear industries.

Riddhi Siddhi Impex is a leading Inconel Shim (600, 625, 718) domestic supplier and manufacturer in India, offering premium-grade Inconel shims in various thicknesses, tempers, and dimensions. With state-of-the-art processing facilities and quality control systems, the company ensures each shim sheet is manufactured to exact tolerances and meets international standards such as ASTM B168, B443, and B670. Their expertise in nickel alloys makes them one of the most trusted names in the high-performance metals industry.

The company manufactures Inconel shims in several popular grades. Inconel 600 offers excellent resistance to oxidation and carburization at high temperatures. Inconel 625 is highly resistant to aggressive environments including seawater, acidic and alkaline conditions. Inconel 718, on the other hand, provides exceptional strength and corrosion resistance while being suitable for cryogenic to elevated temperature applications. These materials are offered in soft annealed or cold-worked conditions, depending on the requirement

Riddhi Siddhi Impex supplies Inconel shims in precision thicknesses ranging from 0.05 mm to 3.00 mm, in forms such as foil, strip, sheet, and custom-cut shims. The surface finish can be customized to mill, bright, or polished finish, and all materials are traceable with material test certificates (MTC). Their shims are widely used in high-precision sealing, gasketing, thermal shielding, furnace linings, and critical aerospace assemblies.

The company’s reach as a domestic Inconel shim supplier extends to major metro cities like Mumbai, Delhi, Bengaluru (Bangalore), Hyderabad, Chennai, Kolkata, Pune, and Ahmedabad, where industries such as oil & gas, automotive R&D, and chemical processing require high-performance materials. Riddhi Siddhi Impex offers fast delivery, technical support, and reliable supply to OEMs and maintenance contractors across these cities.

Inconel Shim (600, 625, 718) – Specifications & Domestic Supply

1. Specification

Product Name	Inconel Shim
Grades	Inconel 600, Inconel 625, Inconel 718
Thickness Range	0.05 mm to 3.00 mm
Width	Up to 1000 mm
Length	Coil or Cut Length
Finish	Mill, Bright, Polished
Temper	Annealed, Cold Worked

2. Chemical Composition

Element	Inconel 600 (%)	Inconel 625 (%)	Inconel 718 (%)
Nickel (Ni)	72.0 min	58.0 min	50.0 – 55.0
Chromium (Cr)	14.0 – 17.0	20.0 – 23.0	17.0 – 21.0
Iron (Fe)	6.0 – 10.0	5.0 max	Balance
Niobium (Nb)	–	3.15 – 4.15	4.75 – 5.50
Molybdenum (Mo)	–	8.0 – 10.0	2.8 – 3.3

3. Mechanical Properties

Property	Inconel 600	Inconel 625	Inconel 718
Tensile Strength (MPa)	655	827	1240
Yield Strength (MPa)	240	414	1030
Elongation (%)	40	30	12
Hardness (Rockwell)	B88	95 HRB	Rockwell C35

4. Dimension Chart

Thickness (mm)	Width (mm)	Form
0.05 – 0.10	Up to 300	Foil
0.10 – 1.00	Up to 600	Strip / Coil
1.00 – 3.00	Up to 1000	Sheet / Cut Piece

5. Equivalent Grades & Standards

Grade	UNS	Werkstoff	ASTM Standard
Inconel 600	N06600	2.4816	B168
Inconel 625	N06625	2.4856	B443
Inconel 718	N07718	2.4668	B670 / B637

6. Other Types of Shims Offered

Material	Grades	Forms
Stainless Steel	304, 316, 321	Foils, Strips, Sheets
Brass	CZ108, C260	Coils, Sheets
Copper	C110, C101	Shims, Foils
Phosphor Bronze	PB102, C51000	Strips, Coils

Industrial zones and port-based areas like Dahej, Vilayat, Somnath, Narmada, Navsari, Valsad, Rajpipla, Akola, Chandrapur, Kolhapur, and Nashik are also served by Riddhi Siddhi Impex, offering a strong supply chain advantage to industries located near chemical, nuclear, and marine clusters. Their Inconel shims are known for precision, consistency, and durability, making them the preferred choice for critical applications.

7. Frequently Asked Questions (FAQs)

Q1: What are Inconel Shims used for?

A1: Inconel shims are used in high-temperature, corrosive environments such as jet engines, gas turbines, heat exchangers, and chemical plants.

Q2: Do you supply Inconel shims in custom sizes?

A2: Yes, Riddhi Siddhi Impex offers custom thicknesses, widths, and lengths based on customer drawings or specifications.

Q3: Are Inconel 600, 625, and 718 corrosion-resistant?

A3: Yes, all three grades provide excellent corrosion resistance; Inconel 625 and 718 are especially suited for aggressive chemical and saltwater environments.

Q4: Do you deliver across India?

A4: Absolutely. We supply Inconel shims to Mumbai, Delhi, Chennai, Bengaluru, Hyderabad, Pune, Surat, Vadodara, and many more cities across India.
