Manufacturer, Supplier & Exporter of Hastelloy B2 Ferrule Fittings
Hastelloy B2 Ferrule Fittings are highly reliable components used in various industries that require excellent resistance to strong reducing environments. These fittings are manufactured using Hastelloy B2 alloy, which is primarily composed of nickel and molybdenum. This specific combination offers superior resistance to hydrochloric acid, hydrogen chloride gas, sulfuric acid, and other aggressive chemical environments. Riddhi Siddhi Impex, a reputed manufacturer and domestic supplier in India, produces high-quality Hastelloy B2 ferrule fittings tailored for demanding applications..
The primary applications for Hastelloy B2 ferrule fittings include chemical processing, petrochemicals, pharmaceuticals, marine industries, and paper & pulp industries. These fittings are often selected for critical systems where failures due to corrosion or chemical attack can lead to significant operational and financial losses. Their ability to resist stress corrosion cracking and pitting in harsh media makes them a preferred choice among engineers and project managers..
Riddhi Siddhi Impex supplies these fittings in a variety of types such as union elbows, bulkhead unions, male and female connectors, reducing unions, and tees. They also offer customization options to meet specific dimensional, pressure, and material certification requirements. Their ability to offer tailor-made solutions has made them a trusted name in the field of exotic alloy ferrule fittings.
These fittings not only offer outstanding corrosion resistance but also exhibit good mechanical properties across a wide temperature range. They can be used in both cryogenic and high-temperature environments without compromising structural integrity. This makes them suitable for use in heat exchangers, reactors, piping systems, and pressure vessels.

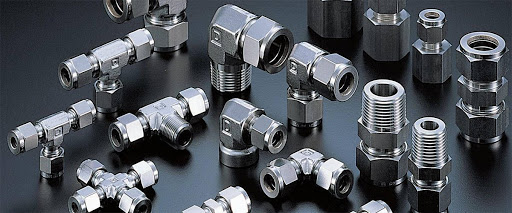

Hastelloy B2 Ferrule Fittings
Specification
| Grade | Hastelloy B2 |
|---|---|
| Standard | ASTM B619 / B622 / B626, ASME SB619 / SB622 / SB626 |
| Size Range | 1/8” to 2” (Custom sizes available) |
| Connection Type | Male, Female, Welded, Threaded |
| Form | Union, Elbow, Tee, Cross, Adapter, Reducer, Cap |
| End Connection | NPT, BSPT, BSPP, Compression |
| Pressure Rating | Up to 6000 PSI |
Chemical Composition
| Element | Content (%) |
|---|---|
| Nickel (Ni) | Balance |
| Molybdenum (Mo) | 26.0 – 30.0 |
| Iron (Fe) | 2.0 max |
| Chromium (Cr) | 1.0 max |
| Cobalt (Co) | 1.0 max |
| Manganese (Mn) | 1.0 max |
| Carbon (C) | 0.02 max |
| Silicon (Si) | 0.10 max |
| Sulfur (S) | 0.03 max |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | 760 MPa (min) |
| Yield Strength (0.2% offset) | 350 MPa (min) |
| Elongation | 40% (min) |
| Hardness | ≤ 100 HRB |
Dimension Chart
| Tube Size (inches) | Outer Diameter (mm) | Length (mm) |
|---|---|---|
| 1/8" | 6.35 | 30 |
| 1/4" | 12.7 | 35 |
| 3/8" | 9.53 | 40 |
| 1/2" | 12.7 | 45 |
| 3/4" | 19.05 | 50 |
| 1" | 25.4 | 60 |
Equivalent Grades
| Standard | Grade |
|---|---|
| UNS | N10665 |
| Werkstoff Nr. | 2.4617 |
| EN | NiMo28 |
Equivalent Standards
| Standard | Description |
|---|---|
| ASTM B619 | Welded Pipe |
| ASTM B622 | Seamless Pipe |
| ASTM B626 | Welded Tube |
Other Types of Hastelloy Ferrule Fittings
| Grade | Description |
|---|---|
| Hastelloy C22 | Excellent resistance to oxidizing media |
| Hastelloy C276 | Exceptional corrosion resistance in chemical processing |
| Hastelloy X | High strength at elevated temperatures |
With years of industry experience, state-of-the-art facilities, and a customer-centric approach, Riddhi Siddhi Impex continues to serve as a domestic supplier of Hastelloy B2 Ferrule Fittings with excellence. Their dedication to performance, reliability, and customer satisfaction positions them as a go-to source for all types of ferrule fittings in the Indian industrial market.
Frequently Asked Questions (FAQs)
- Q1: What is the primary advantage of Hastelloy B2 ferrule fittings?
- A1: They provide excellent resistance to hydrochloric acid and other strong reducing agents, making them ideal for chemical process industries.
- Q2: Are these fittings suitable for high-pressure systems?
- A2: Yes, Hastelloy B2 ferrule fittings are designed for high-pressure applications and are tested for leak-tight performance.
- Q3: Do you supply to cities outside Mumbai?
- A3: Yes, Riddhi Siddhi Impex supplies across major Indian cities including Delhi, Bengaluru, Chennai, Hyderabad, Pune, Kolkata, Surat, Ahmedabad, and more.
- Q4: Can I get MTC and third-party inspection reports?
- A4: Absolutely, MTCs and third-party inspection documents are provided as per client requirements.
