Manufacturer, Supplier & Exporter of Carbon Steel Socket Weld Elbow 45° / 90°
Carbon steel socket weld elbows at 45° and 90° are critical pipe fittings engineered to change the direction of fluid flow in piping systems, especially for small to medium diameters in pressure-intensive environments. The socket weld connection allows the pipe to be inserted into a recessed socket and welded, creating a strong, leak‑resistant joint. Because of their compact and robust design, these elbows are widely used in industries such as petrochemicals, oil & gas, power plants, chemical processing, and general engineering systems..
Carbon Steel Socket Weld Elbows at 45° and 90° angles are vital components in piping systems designed to alter the direction of fluid flow with high strength and leak-proof connections. These elbows are especially suited for small-diameter, high-pressure pipelines where socket weld joints provide a reliable, durable, and easy-to-inspect connection. Manufactured using quality carbon steel materials, these fittings ensure excellent mechanical properties and resistance to wear, making them ideal for use in industries such as oil and gas, petrochemicals, power generation, and chemical processing..
Riddhi Siddhi Impex is a leading manufacturer and supplier of Carbon Steel Socket Weld Elbows across India, offering a comprehensive range of 45° and 90° elbows that meet international standards such as ASME B16.11 and ASTM specifications. The company’s products are manufactured under stringent quality controls to ensure dimensional accuracy, high tensile strength, and superior corrosion resistance. Their in-house forging and machining facilities enable customization in size, pressure class, and material grades to suit specific project requirements...
Logistics and supply chain efficiency is another key strength of Riddhi Siddhi Impex. With warehouses and distribution partnerships across various Indian cities such as Ankleshwar, Dahej, Navsari, Valsad, Rajpipla, and Vilayat, they ensure that even remote industrial clusters have access to high-quality carbon steel socket weld elbows without delays. This widespread network helps reduce lead times and shipping costs, benefiting contractors and end-users alike..
In conclusion, Carbon Steel Socket Weld Elbows 45° / 90° by Riddhi Siddhi Impex combine superior manufacturing quality with a comprehensive domestic supply chain. Their ability to serve across India's vast industrial landscape—from metros like Mumbai and Delhi to emerging industrial hubs—makes them a preferred supplier for industries requiring reliable, high-performance piping fittings. Whether for new projects or maintenance operations, Riddhi Siddhi Impex offers dependable product availability and technical expertise to meet diverse piping needs..

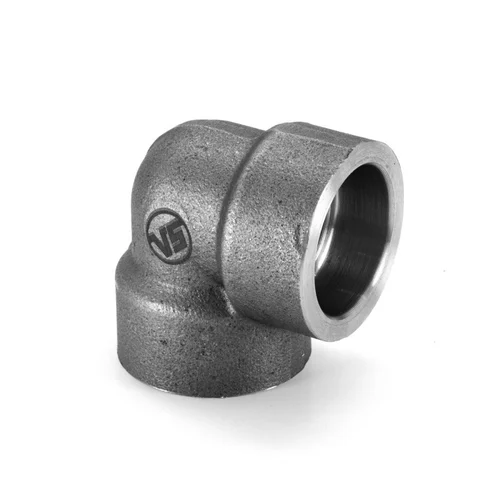

Carbon Steel Socket Weld Elbow 45° / 90°
Specification
| Material | Carbon Steel ASTM A234 WPB / ASTM A105 |
|---|---|
| Angle | 45°, 90° |
| Connection Type | Socket Weld |
| Size Range | 1/2" to 4" (or customized) |
| Pressure Class | Class 2000, 3000, 6000, 9000 |
| Standards | ASME B16.11, ASTM A234, ASTM A105 |
Chemical Composition
| Element | Content (%) |
|---|---|
| Carbon (C) | 0.30 max |
| Manganese (Mn) | 0.60 - 1.05 |
| Phosphorus (P) | 0.035 max |
| Sulfur (S) | 0.035 max |
| Silicon (Si) | 0.10 - 0.35 |
Mechanical Properties
| Property | Value |
|---|---|
| Minimum Tensile Strength | 485 MPa |
| Minimum Yield Strength | 250 MPa |
| Elongation (in 2 inches) | 23% |
Dimension Chart (90° Socket Weld Elbow)
| Nominal Size (NPS) | Center to End (C to E) (mm) | Socket Depth (mm) | Outside Diameter (OD) (mm) | Weight (Kg) |
|---|---|---|---|---|
| 1/2" | 38 | 14 | 21.3 | 0.22 |
| 3/4" | 44 | 16 | 26.7 | 0.29 |
| 1" | 51 | 19 | 33.4 | 0.44 |
| 1 1/4" | 57 | 22 | 42.2 | 0.65 |
| 1 1/2" | 64 | 25 | 48.3 | 0.81 |
| 2" | 73 | 30 | 60.3 | 1.15 |
Equivalent Grades
| Standard | Grade |
|---|---|
| ASTM | WPB (A234), A105 |
| EN | S235JR (approx.) |
| JIS | SS400 (approx.) |
| GB | 20# Steel (approx.) |
Equivalent Standards
| Standard | Description |
|---|---|
| ASME B16.11 | Forged Fittings, Socket Weld and Threaded |
| ASTM A234 | Carbon Steel Pipe Fittings |
| ASTM A105 | Carbon Steel Forged Pipe Fittings |
Other Types of Carbon Steel Elbows
| Type | Description |
|---|---|
| Butt Weld Elbow | Welded pipe end connections, used for larger diameters |
| Threaded Elbow | Internal threads, used for low-pressure systems |
| Long Radius Elbow (LR) | Radius 1.5 times pipe diameter for smoother flow |
| Short Radius Elbow (SR) | Radius equal to pipe diameter, space-saving design |
Carbon Steel Socket Weld Elbows at 45° and 90° are essential fittings in piping systems designed to change the flow direction efficiently while ensuring a strong, leak-proof connection. The socket weld design involves inserting the pipe into a recessed socket and welding around the joint, creating a robust and highly reliable connection that can withstand high pressures and vibration. These elbows are widely used in small to medium diameter pipelines in industries such as oil and gas, petrochemicals, power plants, and chemical processing, where the integrity of the pipe joint is critical...
Frequently Asked Questions (FAQs)
- Q1: What are the typical applications of Carbon Steel Socket Weld Elbow 45° / 90°?
- A1: These elbows are commonly used in piping systems for oil and gas, chemical plants, power plants, and water treatment facilities where secure and leak-proof connections are essential.
- Q2: What pressure classes are available for Carbon Steel Socket Weld Elbows?
- A2: They are available in various pressure classes such as Class 2000, 3000, 6000, and 9000, catering to different industrial requirements.
- Q3: Can custom sizes or angles be manufactured?
- A3: Yes, manufacturers like Riddhi Siddhi Impex provide custom size and angle options, including 45° and 90°, to meet specific project requirements.
- Q4: How does a socket weld elbow differ from other elbow types?
- A4: Socket weld elbows feature a socket where the pipe is inserted and then welded, offering a strong and leak-proof connection typically used in high-pressure systems, unlike threaded or butt weld elbows.
